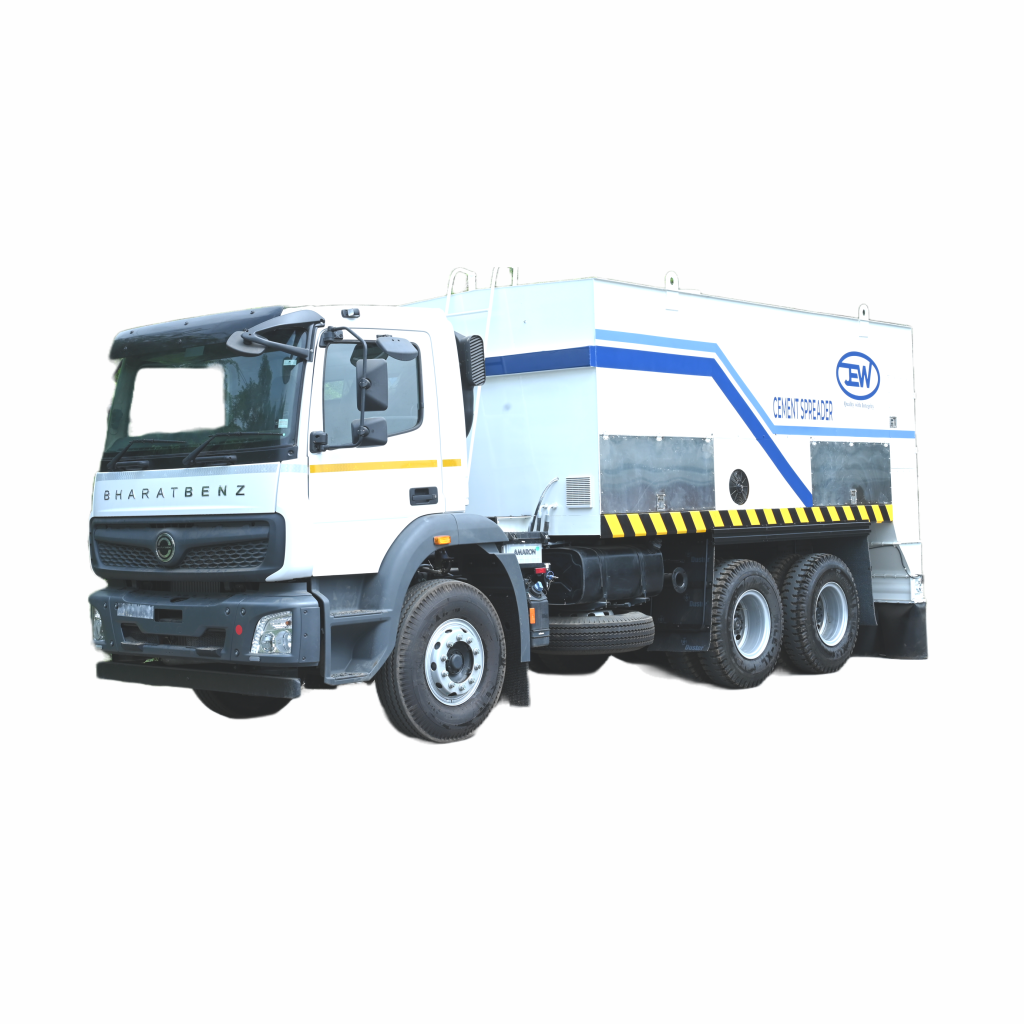

Cement Spreader CS9416

machine

overview

Introducing the JEW9416 cement spreader by Jaspal Engineering Works – your reliable partner for construction projects. With a generous 16m³ container capacity and a handy 4" filling hose, it makes cement distribution a breeze. Its sturdy MS material construction, 890 mm chain conveyor width, and 610 mm slide gate opening height ensure durability and precise operation. The hydraulic system, featuring YUKEN, M+S, and VELJAN brands, delivers powerful performance, while the electrical system, backed by FUJI and SCHNEIDER, guarantees smooth operation.

CONTROL PANEL

CONVENIENT, HIGH-PRECISION COMPUTER CONTROL

  1. Easy-to-operate control terminal.
  2. Convenient, continuous adjustment of the spread rate.
  3. “Flintec” electronic weighing device with automatic readjustment as an optional equipment feature.
  4. Sensor-controlled chain conveyor for optimised material feed to the spreading unit.
  5. Integrated filling level indicator (container “full” or“empty”)

RELIABLE DRIVE SYSTEM

  1. A close on-board hydraulic system guarantees operation independent of the carrier vehicle.
  2. A machine drivable by a truck.

Specifications

FeatureSpecification
ModelCS9416
CHAIN CONVEYOR
Width of Chain Conveyor890 MM
Opening Height of Slide Gate610 MM
Conveyor TypeChain Type
SPREADING UNIT (METERING FEEDERS)SPREADING UNIT 2400 MM
Working Width2,400 (MM)
Partial Widths800 | 800 | 800 (MM)
HYDRAULIC SYSTEM
Max. Hydraulic Power72 Ltr. / MIN X 300 BAR
Hydraulic BrandYUKEN, M+S, VELJAN
Capacity of Hydraulic Fluid Tank300 Ltr
TRUCK REQUIREMENTS
Required Speed of The Truck’s Auxiliary1400 RPM
Drive For Max. Hydraulic Power
Electrical System BrandFUJI, SCHNEIDER
Electrical System – Standard24VDC/ 20 AMP
Weighing Scale BrandFLINTEC

WORKING

HIGHEST SPREADING ACCURACY

  1. Spreading unit in rotary feeder design.
  2. Self-cleaning metering feeders.
  3. Fully automatic metering independent of the travel speed.
  4. Three separately controlled partial widths.
  5. Universal, low volume or high-performance spreading unit.

HIGHLY EFFICIENT DISCHARGE SYSTEM

  1. Quick filling of the container via large filling connectors.
  2. Pneumatic filling devices on both sides, left and right.
  3. Feet chute with two sensor-controlled transverse augers for optimum, efficient distribution of the binder to be spreader.

ERGONOMICALLY OPTIMIZED FLEXIBLE CONTAINER DESIGN

  1. Different container sizes for different spreading requirements.
  2. Suitable for mounting on different types of self-propelled carrier vehicles.
  3. Container inspection ports with safety switches.
  4. Free swinging relief cover above the conveyor floor to prevent material building up in the
    container.
