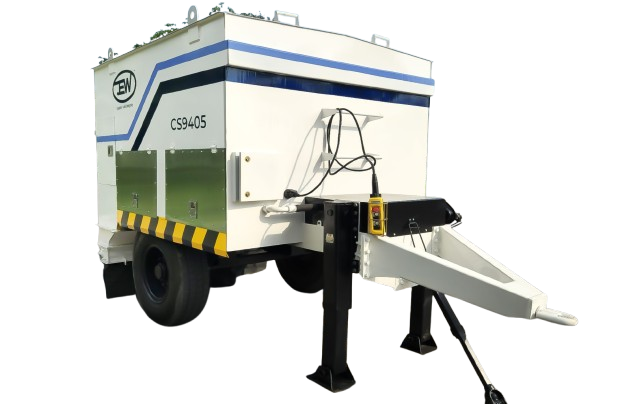

Cement Spreader CS9405
Specifications
| Feature | Specification |
|---|---|
| Model | CS9405 |
| MACHINE OPREATED BY TRACTOR PTO | |
| TRACTOR HORSE POWER REQUIED | ANY BRAND 90 HP TO ABOVE 4X4 |
| REQUIRED SPEED OF THE TRACTOR | 540 RPM |
| PTO DRIVE FOR MAX. HYDRAULIC POWER | |
| CONTAINER | |
| CONTAINER CAPACITY | 6 Ton |
| SIZE OF FILLING CONNECTOR / | 4” |
| FILLING HOSE | |
| MACHINE MATERIAL | MS |
| HOOK LIFTING STAND & CAPCITY | MANUAL (12 TON) |
| WIDTH OF DISCHARGE GATE | 711MM |
| CEMENT DISCHARGE CONVEYOR | CHAIN TYPE |
| SPREADING UNIT (METERING FEEDERS) | SPREADING UNIT 2010 MM |
| WORKING WIDTH / PARTIAL WIDTHS | 2,010 MM / 670MM | 670 MM | 670 MM |
| HYDRAULIC SYSTEM | |
| MAX. HYDRAULIC POWER | 72 L / MIN X 300 BAR |
| HYDRAULIC BRAND | YUKEN, M+S, VELJAN |
| CAPACITY OF HYDRAULIC FLUID TANK | 200 Liter |
| ELECTRIONIC SYSTEM | |
| ELECTRICAL SYSTEM BAND | FUJI, SCHNEIDER |
| ELECTRICAL SYSTEM – STANDARD | 24 VDC / 20 AMP |
| WEIGHING SCALE | if you required |
CONTROL PANEL
CONVENIENT, HIGH-PRECISION COMPUTER CONTROL
- Easy-to-operate control terminal.
- Convenient, continuous adjustment of the spread rate.
- “Flintec” electronic weighing device with automatic readjustment as an optional equipment feature.
- Sensor-controlled chain conveyor for optimised material feed to the spreading unit.
- Integrated filling level indicator (container “full” or“empty”)
RELIABLE DRIVE SYSTEM
- A close on-board hydraulic system guarantees operation independent of the carrier vehicle.
- A machine drivable by a tractor.
